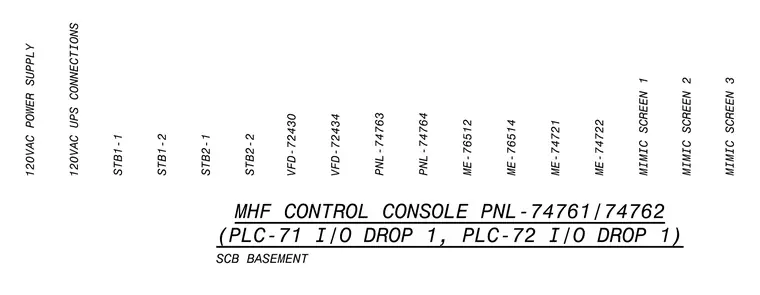

MHF control console panel wiring diagram showing connections for PLC-71 I/O drop 1 and PLC-72 I/O drop 1 located in the SCB basement. The schematic details signal and power routing for mimic screens 1 through 3, panels PNL-74763 and PNL-74764, variable frequency drives VFD-72430 and VFD-72434, and terminal blocks STB1-1 through STB2-2. Additional power distribution feeds include 120VAC power supply and 120VAC uninterruptible power supply connections.
MHF CONTROL CONSOLE PNL -74761 / 74762 (PLC-71 I/O DROP 1, PLC-72 I/O DROP 1) SCB BASEMENT MIMIC SCREEN 3 MIMIC SCREEN 2 MIMIC SCREEN 1 ME-74722 ME-74721 ME-76514 ME-76512 PNL-74764 PNL-74763 VFD-72434 VFD-72430 STB2-2 STB2-1 STB1-2 STB1-1 120VAC UPS CONNECTIONS 120VAC POWER SUPPLY
