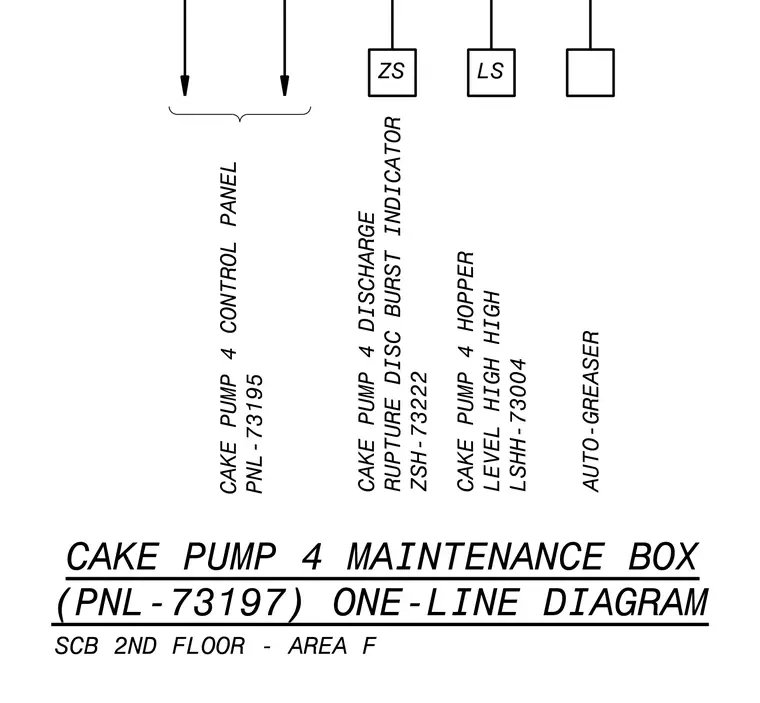

Electrical schematic one-line diagram for cake pump 4 maintenance box panel PNL-73197 located on the second floor in area F. Connections are provided for cake pump 4 control panel PNL-73195, cake pump 4 discharge rupture disc burst indicator ZSH-73222, cake pump 4 hopper level high high LSHH-73004, and the auto-greaser system.
CAKE PUMP 4 MAINTENANCE BOX (PNL-73197) ONE-LINE DIAGRAM SCB 2ND FLOOR - AREA F AUTO-GREASER CAKE PUMP 4 HOPPER LEVEL HIGH HIGH LSHH-73004 co r- CAKE PUMP 4 DISCHARGE RUPTURE DISC BURST INDICATOR ZSH-73222 co N CAKE PUMP 4 CONTROL PANEL PNL-73195
