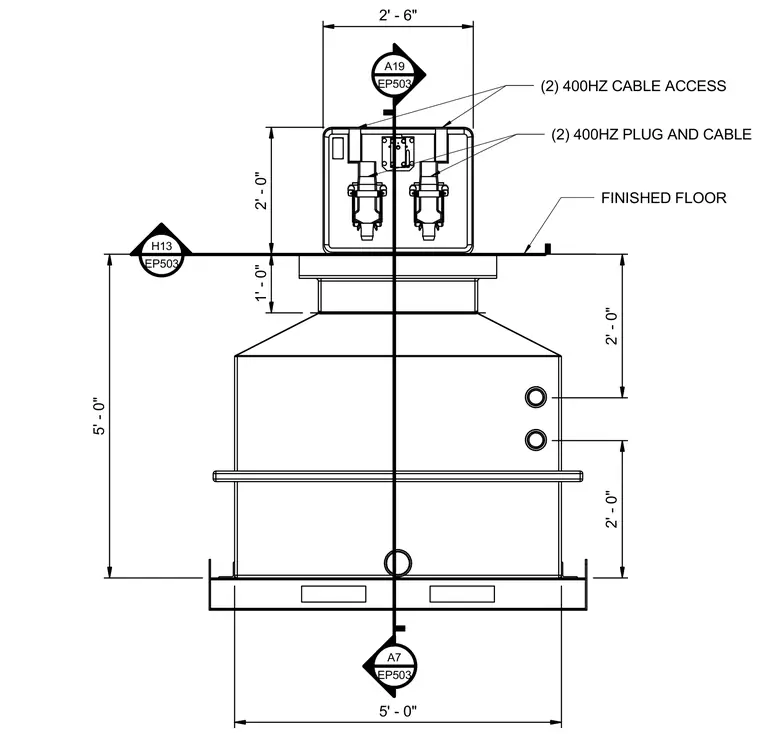

A prefabricated 400Hz pit assembly is recessed into the floor construction. Two 400Hz cable access points and two 400Hz plugs with cables mount within the top enclosure. The entire unit integrates with the finished floor elevation and includes dimensioned clearances for subsurface placement.
(2) 400HZ PLUG AND CABLE FINISHED FLOOR A19 EP503 A7 EP503 H13 EP503 5' - 0" 1' - 0" 2' - 0" 2' - 6" 2' - 0" 2' - 0" 5' - 0" (2) 400HZ CABLE ACCESS
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
