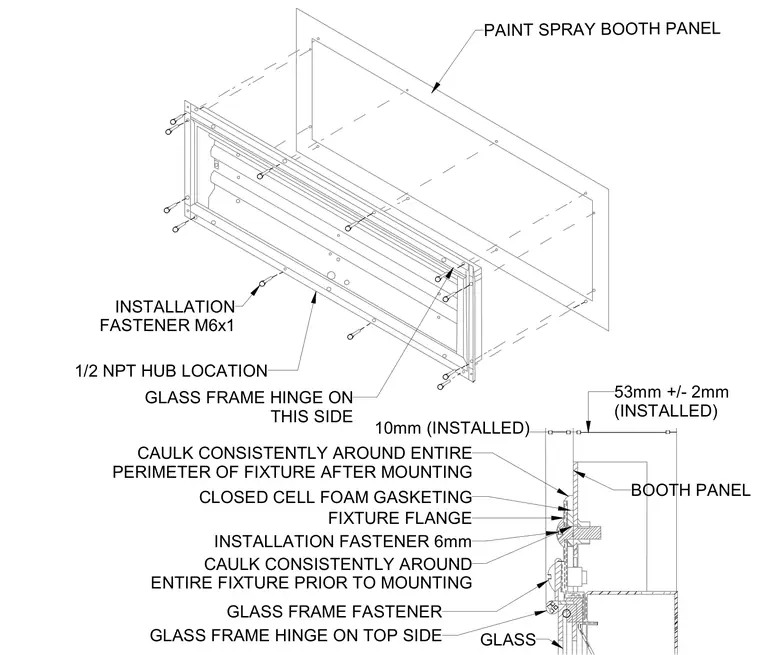

A light fixture is mounted to a paint spray booth panel using M6x1 installation fasteners and sealed with closed-cell foam gasketing. Caulk is applied consistently around the entire fixture perimeter both prior to mounting and after mounting to ensure a tight seal against the booth panel. The assembly includes a fixture flange, a glass frame secured with glass frame fasteners, and a glass frame hinge located on the top side. A 1/2 NPT hub location is provided for electrical entry, with installed dimensions indicating a 10mm clearance and a 53mm +/- 2mm dimension from the panel face.
10mm (INSTALLED) 53mm +/- 2mm (INSTALLED) GLASS GLASS FRAME HINGE ON TOP SIDE FIXTURE FLANGE GLASS FRAME FASTENER BOOTH PANEL CLOSED CELL FOAM GASKETING CAULK CONSISTENTLY AROUND ENTIRE PERIMETER OF FIXTURE AFTER MOUNTING PAINT SPRAY BOOTH PANEL INSTALLATION FASTENER M6x1 1/2 NPT HUB LOCATION GLASS FRAME HINGE ON THIS SIDE INSTALLATION FASTENER 6mm CAULK CONSISTENTLY AROUND ENTIRE FIXTURE PRIOR TO MOUNTING
