Structural · E-779ZJ

Metal Deck Direction Change

Materials

Elements

About this detail

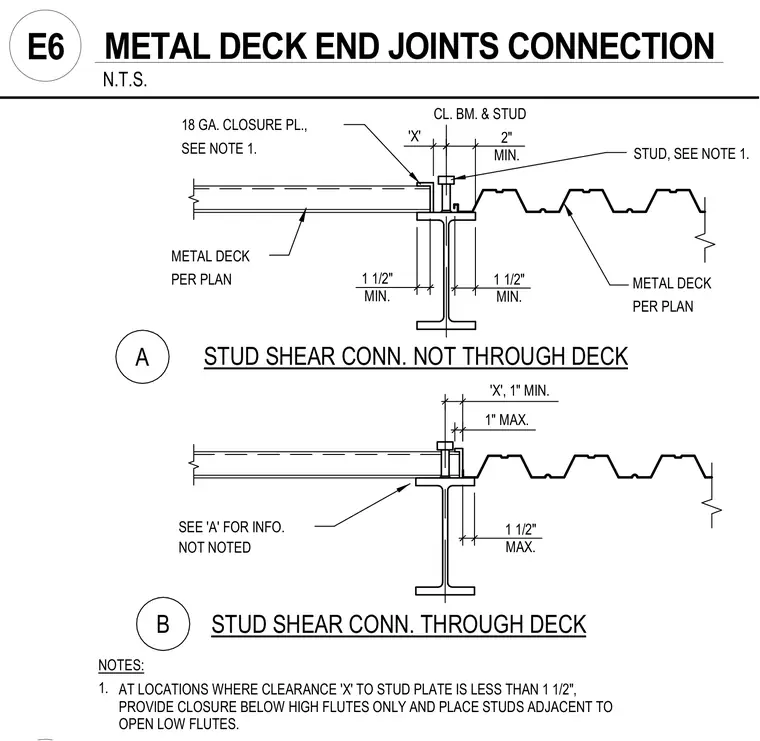

Metal deck end joints bear over a supporting steel beam with specific clearance requirements for shear studs. When clearance 'X' to the stud plate is less than 1 1/2 inches, an 18 gauge closure plate is provided below high flutes only, placing studs adjacent to open low flutes. Shear studs are installed either through the metal deck or not through the deck per structural plans. Minimum and maximum edge distances and spacings are maintained for the metal deck and stud placement.
