A recessed troffer light fixture is set into a lay-in ceiling grid system. Four independent wire hangers attach to each corner of the fixture, isolated from the ceiling support system. Fixture clamps are provided on each side of the fixture to secure it to the grid.

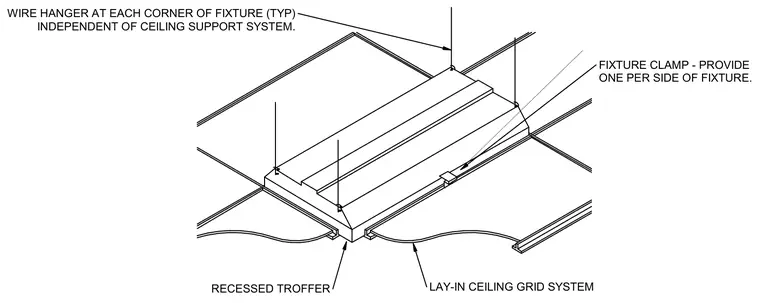

FIXTURE CLAMP - PROVIDE ONE PER SIDE OF FIXTURE. LAY-IN CEILING GRID SYSTEM RECESSED TROFFER WIRE HANGER AT EACH CORNER OF FIXTURE (TYP) INDEPENDENT OF CEILING SUPPORT SYSTEM.
