Structural · E-6ZJPZ

Steel Column Embedded in Concrete Wall Plan Detail

Materials

Concrete Steel

Elements

Columns Walls Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Welded Connection

About this detail

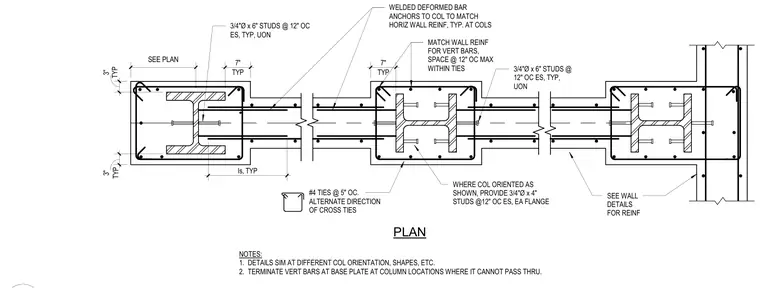

This structural plan detail shows steel columns embedded within a concrete wall, tied together with welded shear studs and reinforcing steel. Three-quarter-inch diameter by six-inch studs are spaced at twelve inches on center each side typically, with alternate stud sizing applied depending on column orientation. Number four ties are placed at five inches on center with alternating direction of cross ties. Welded deformed bar anchors match the horizontal wall reinforcement, and vertical bars are spaced at a maximum of twelve inches on center within ties.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
