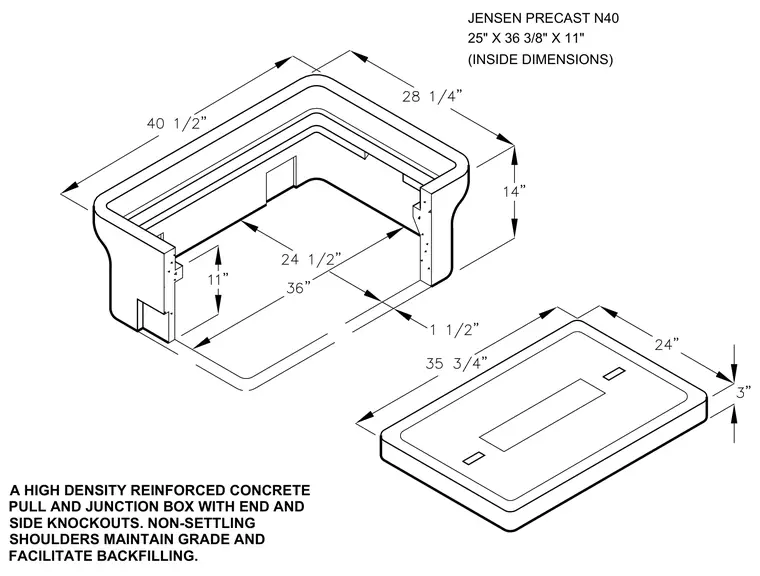

This isometric drawing details a high-density reinforced concrete pull and junction box featuring integrated end and side knockouts. Non-settling shoulders maintain grade and facilitate backfilling during installation. Inside dimensions measure twenty-five inches by thirty-six and three-eighths inches by eleven inches, with overall exterior dimensions of forty and one-half inches by twenty-eight and one-quarter inches. The corresponding lid measures thirty-five and three-quarters inches by twenty-four inches with a three-inch depth.
JENSEN PRECAST N40 (INSIDE DIMENSIONS) 25" X 36 3/8" X 11" A HIGH DENSITY REINFORCED CONCRETE PULL AND JUNCTION BOX WITH END AND SIDE KNOCKOUTS. NON-SETTLING SHOULDERS MAINTAIN GRADE AND FACILITATE BACKFILLING.
