Wireless Lighting Control Sensors and Keypad Layout

Elements

About this detail

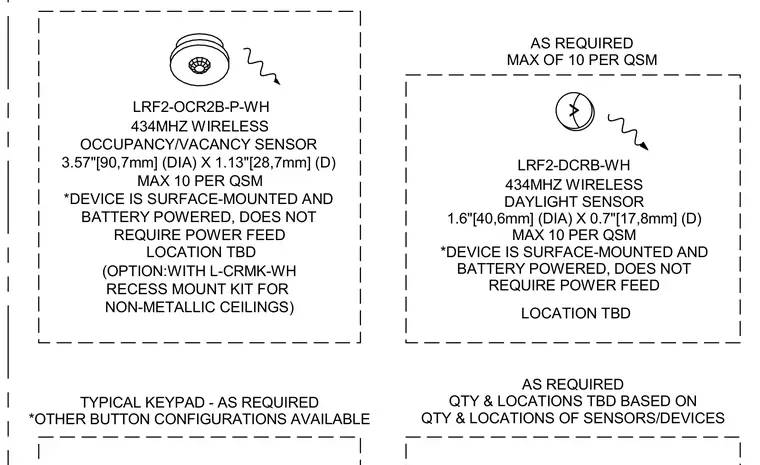

The LRF2-OCR2B-P-WH 434MHz wireless occupancy and vacancy sensor measures three and fifty-seven hundredths inches in diameter by one and thirteen hundredths inches deep and operates surface-mounted and battery-powered without requiring a power feed. An optional recess mount kit is available for non-metallic ceilings using the L-CRMK-WH part. The LRF2-DCRB-WH 434MHz wireless daylight sensor measures one and six-tenths inches in diameter by seventy-hundredths inches deep and similarly operates surface-mounted and battery-powered without a power feed. A maximum of ten devices connect per quantum sensor module. Typical keypads feature alternative button configurations as required with quantities and locations determined by the sensor layout.
