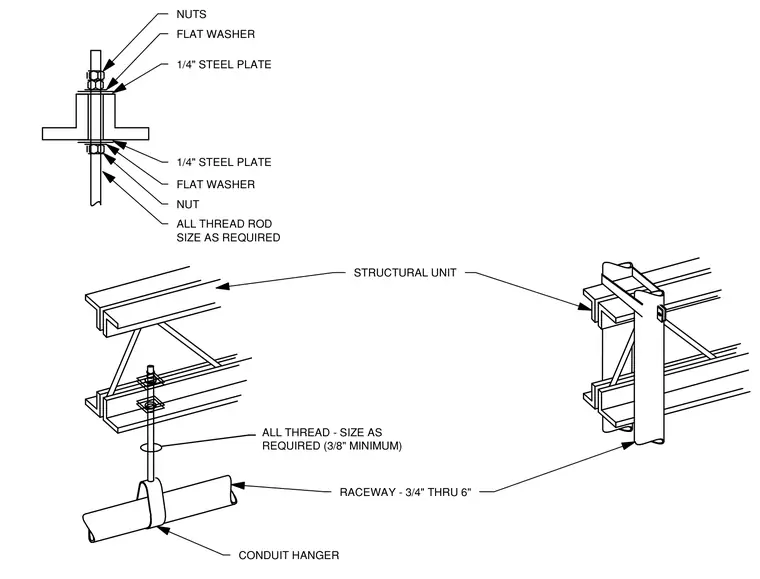

An all-thread rod of size as required with a three-eighths inch minimum diameter suspends a conduit hanger supporting raceways ranging from three-quarters of an inch to six inches. The all-thread rod secures through the structural unit using one-quarter-inch steel plates, flat washers, and nuts on both top and bottom flanges. The assembly provides vertical support for electrical raceways and conduit suspended from overhead structural framing members.
STRUCTURAL UNIT CONDUIT HANGER RACEWAY −3/4" THRU 6" ALL THREAD −SIZE AS REQUIRED (3/8" MINIMUM) NUTS FLAT WASHER 1/4" STEEL PLATE NUT FLAT WASHER 1/4" STEEL PLATE ALL THREAD ROD SIZE AS REQUIRED
