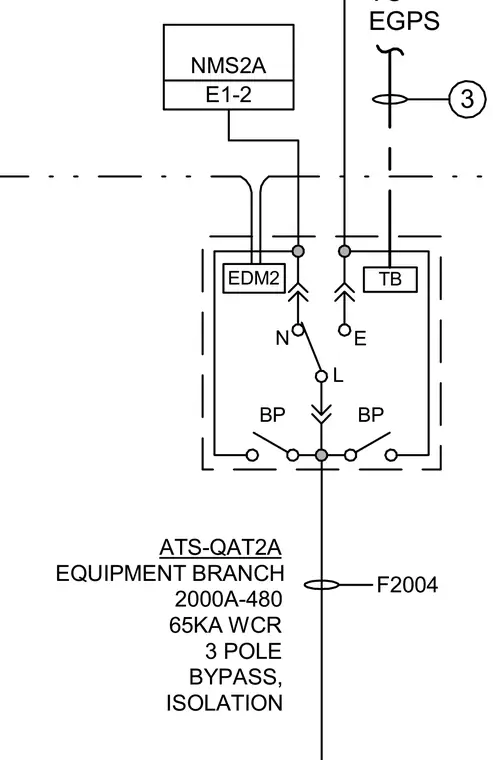

This electrical riser diagram details the ATS-QAT2A equipment branch setup rated at 2000A, 480V with a 65KA withstand current rating. The assembly features a three-pole bypass isolation automatic transfer switch connected to normal and emergency power sources. Feeder F2004 connects to the system along with terminal block TB and emergency generator power source EGPS. Control and monitoring connections link to NMS2A through EDM2.
EDM2 TB E1-2 NMS2A 3 TO EGPS ATS-QAT2A EQUIPMENT BRANCH 2000A-480 65KA WCR 3 POLE BYPASS, ISOLATION F2004 N E L BP BP EDM2 TB E1-2 NMS2A 3 TO EGPS ATS-QAT2A EQUIPMENT BRANCH 2000A-480 65KA WCR 3 POLE BYPASS, ISOLATION F2004 N E L BP BP
