Electrical · E-6NDS7

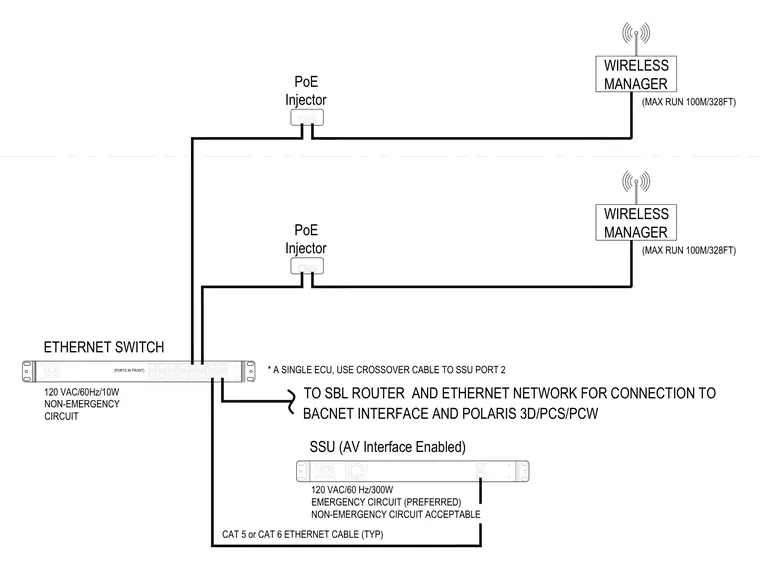

BACnet Interface and Polaris 3D/PCS/PCW Connection Diagram

Elements

About this detail

An Ethernet switch connects to an SSU with AV interface enabled via a Category 5 or Category 6 Ethernet cable, using a crossover cable to SSU port two when a single ECU is present. The SSU requires a one hundred twenty volt AC sixty hertz three hundred watt emergency circuit, though a non-emergency circuit is acceptable. Power over Ethernet injectors supply power to wireless managers with a maximum run of one hundred meters or three hundred twenty-eight feet, powered by a one hundred twenty volt AC sixty hertz ten watt non-emergency circuit. The system ties into the SBL router and Ethernet network for integration with BACnet interfaces and Polaris 3D, PCS, and PCW units.
