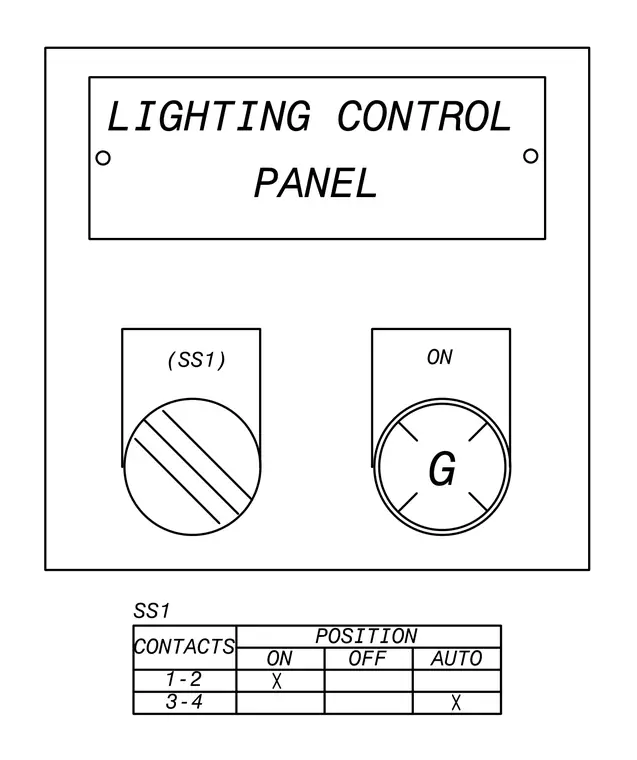

The lighting control panel features an engraved label plate secured with two screws above two control switches designated SS1 and ON. Switch SS1 includes diagonal hatch markings and a contact position table mapping contact pairs 1-2 and 3-4 to ON, OFF, and AUTO positions with marked closures.
LIGHTING CONTROL PANEL O O ON (SS1) G SS1 POSITION CONTACTS ON OFF AUTO 1-2 X 3-4 X
