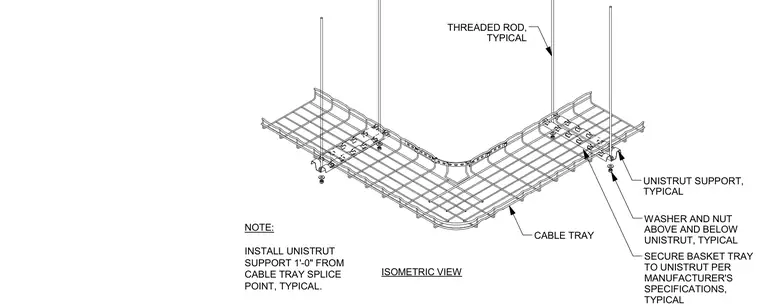

An overhead cable tray 90-degree bend is suspended from the structure using vertical threaded rods anchored to Unistrut support channels. The basket tray is secured to the Unistrut support using washers and nuts positioned both above and below the channel. Unistrut supports are installed one foot away from each cable tray splice point.
ISOMETRIC VIEW NOTE: INSTALL UNISTRUT SUPPORT 1'-0" FROM CABLE TRAY SPLICE POINT, TYPICAL. UNISTRUT SUPPORT, TYPICAL THREADED ROD, TYPICAL CABLE TRAY WASHER AND NUT ABOVE AND BELOW UNISTRUT, TYPICAL SECURE BASKET TRAY TO UNISTRUT PER MANUFACTURER'S SPECIFICATIONS, TYPICAL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
