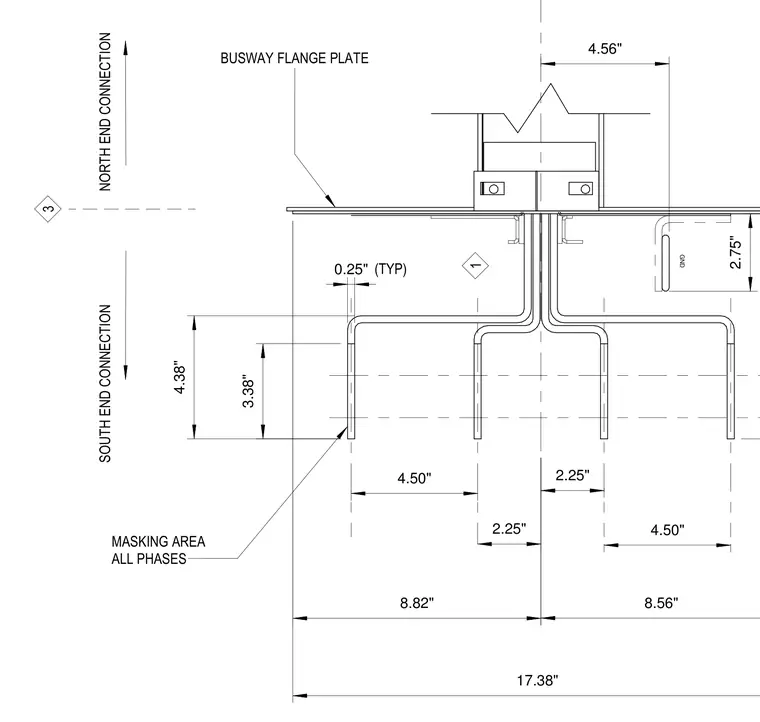

The busway flange plate assembly for the south end connection features precise dimensional layout markings. The assembly incorporates specified masking areas across all phases and maintains 0.25-inch typical spacing. Grounding details and busbar configurations are positioned symmetrically around the central axis.
2.75" 4.38" 4.50" 8.82" 8.56" 17.38" 2.25" 2.25" 4.50" GND 4.56" 3.38" MASKING AREA ALL PHASES 0.25" 1 (TYP) BUSWAY FLANGE PLATE SOUTH END CONNECTION NORTH END CONNECTION 3
