Recessed and Flush Light Fixture Ceiling Connections

Materials

Concrete Steel

Elements

Ceilings Decks Bracing Anchors / Embeds Connections / Plates Reinforcing

Connections

Bracing Connection Rebar Splice / Development Deck Attachment Embed Plate

About this detail

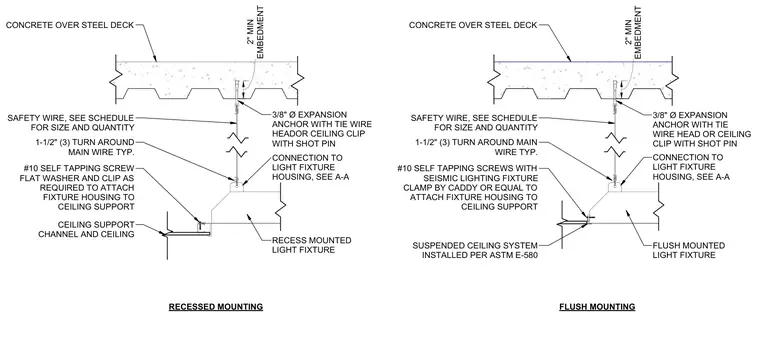

These details show the overhead suspension and structural attachment methods for recessed and flush-mounted light fixtures anchored to a concrete over steel deck ceiling assembly. The fixture housing is hung using a three-turn main safety wire connected via a three-eighths inch diameter expansion anchor with a tie wire head or ceiling clip with a two-inch minimum embedment. For the recessed mounting condition, the housing connects to the ceiling support channel using a number ten self-tapping screw, flat washer, and clip. The flush-mounted condition utilizes a suspended ceiling system installed per ASTM E-580 with a seismic lighting fixture clamp by Caddy or equal.
