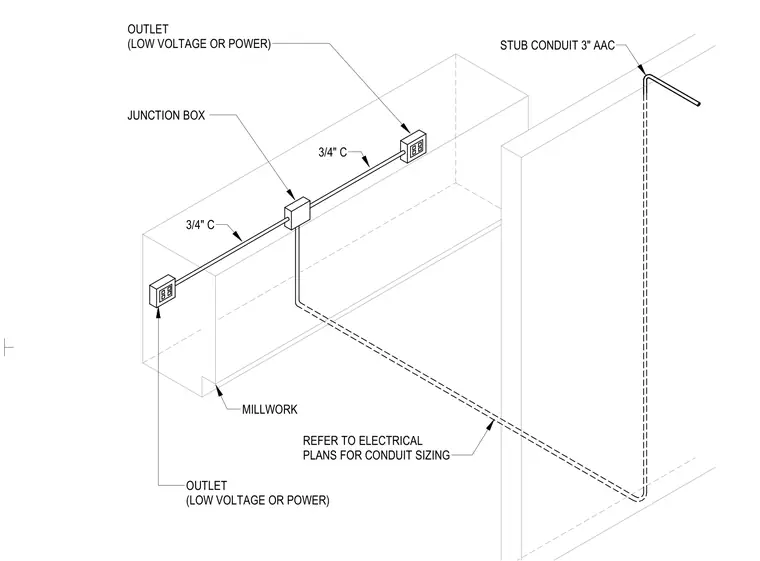

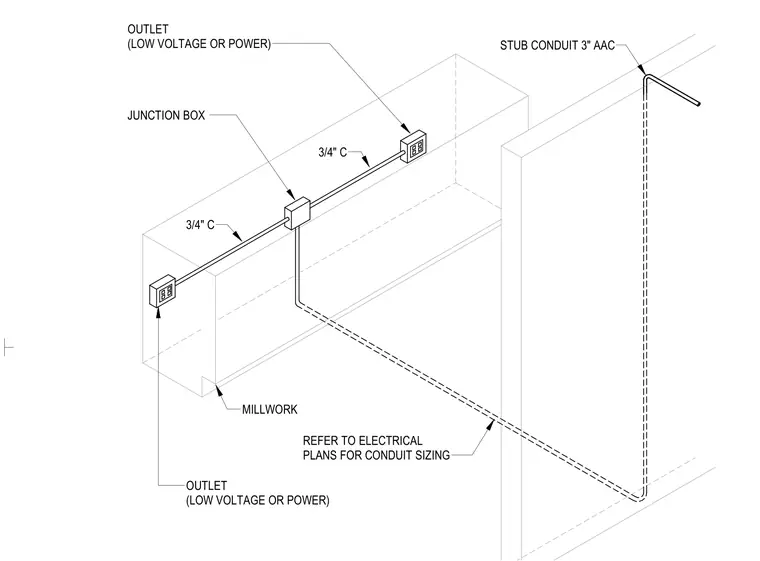

Low voltage or power outlets mount within the millwork, connected by three-quarter-inch conduit to a central junction box. A conduit run extends from the junction box to a three-inch conduit stub-up, with specific conduit sizing determined by the electrical plans. Electrical components integrate into custom casework, providing a path for wiring distribution.
