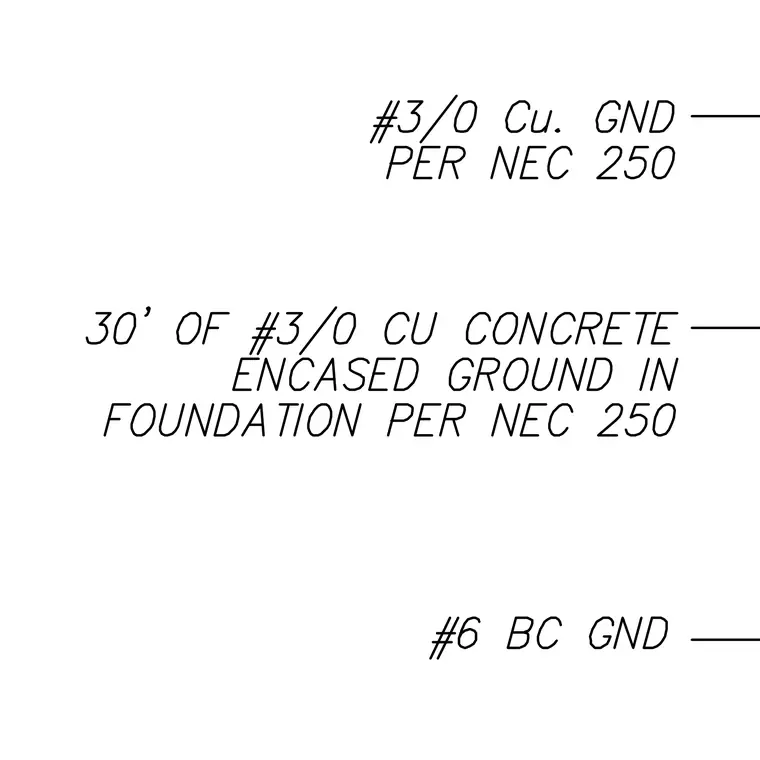

A #3/0 copper ground conductor runs per National Electrical Code 250 requirements alongside thirty feet of #3/0 copper concrete encased ground in the foundation per National Electrical Code 250, accompanied by a #6 bare copper ground conductor.
