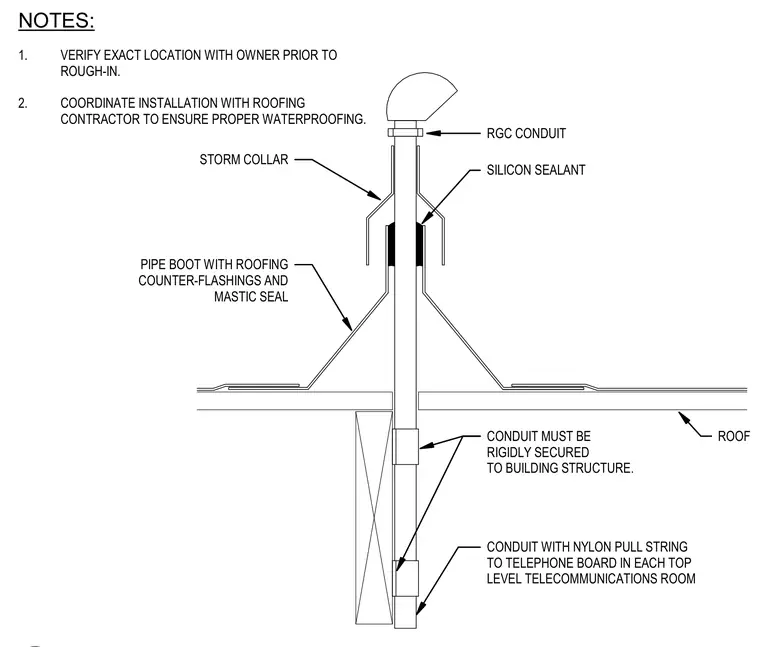

A rigid galvanized conduit penetrates the roof assembly, secured rigidly to the building structure below. The penetration is sealed with a pipe boot incorporating roofing counter-flashings and a mastic seal, complemented by a storm collar and silicon sealant at the upper joint. The conduit extends downward into the building with a nylon pull string routing to the telephone board in the top level telecommunications room.
SILICON SEALANT STORM COLLAR ROOF CONDUIT MUST BE RIGIDLY SECURED TO BUILDING STRUCTURE. 1. VERIFY EXACT LOCATION WITH OWNER PRIOR TO ROUGH-IN. 2. COORDINATE INSTALLATION WITH ROOFING CONTRACTOR TO ENSURE PROPER WATERPROOFING. CONDUIT WITH NYLON PULL STRING TO TELEPHONE BOARD IN EACH TOP LEVEL TELECOMMUNICATIONS ROOM NOTES: RGC CONDUIT PIPE BOOT WITH ROOFING COUNTER-FLASHINGS AND MASTIC SEAL
