Typical Conduit Rack Detail

Materials

Elements

About this detail

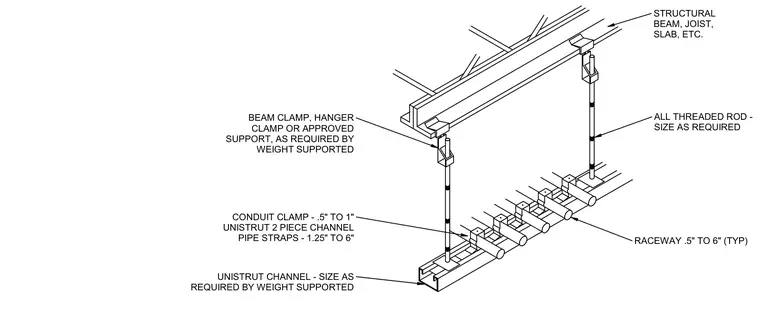

Suspended trapeze conduit rack assembly hanging from overhead structural beams, joists, or slabs. Beam clamps, hanger clamps, or approved supports sized by supported weight attach to the structure and hold all-threaded rods of required size. The threaded rods suspend a Unistrut channel sized according to the supported weight. Raceways ranging from 0.5 inches to 6 inches are secured onto the channel using 0.5-inch to 1-inch conduit clamps, Unistrut 2-piece channel pipe straps, or 1.25-inch to 6-inch pipe straps.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
