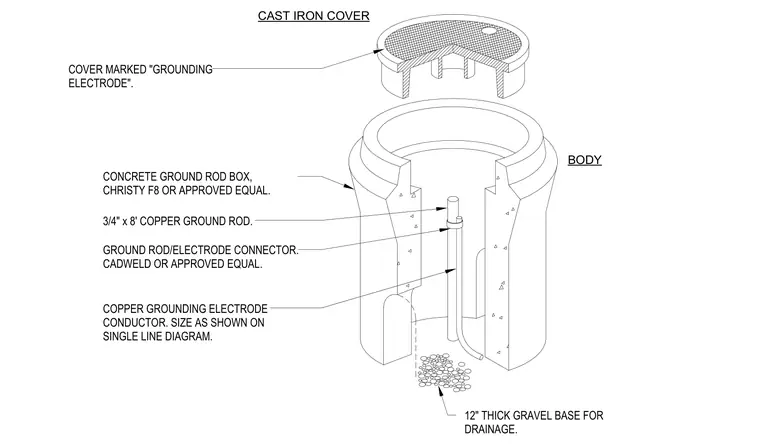

A concrete ground rod box, such as Christy F8 or approved equal, houses a three-quarter inch by eight foot copper ground rod driven into the earth. The box sits on a twelve inch thick gravel base for drainage and is topped with a cast iron cover marked grounding electrode. A copper grounding electrode conductor connects to the ground rod using a Cadweld or approved equal ground rod and electrode connector.
BODY CAST IRON COVER COVER MARKED "GROUNDING ELECTRODE". 12" THICK GRAVEL BASE FOR DRAINAGE. CONCRETE GROUND ROD BOX, CHRISTY F8 OR APPROVED EQUAL. 3/4" x 8' COPPER GROUND ROD. GROUND ROD/ELECTRODE CONNECTOR. CADWELD OR APPROVED EQUAL. COPPER GROUNDING ELECTRODE CONDUCTOR. SIZE AS SHOWN ON SINGLE LINE DIAGRAM.
