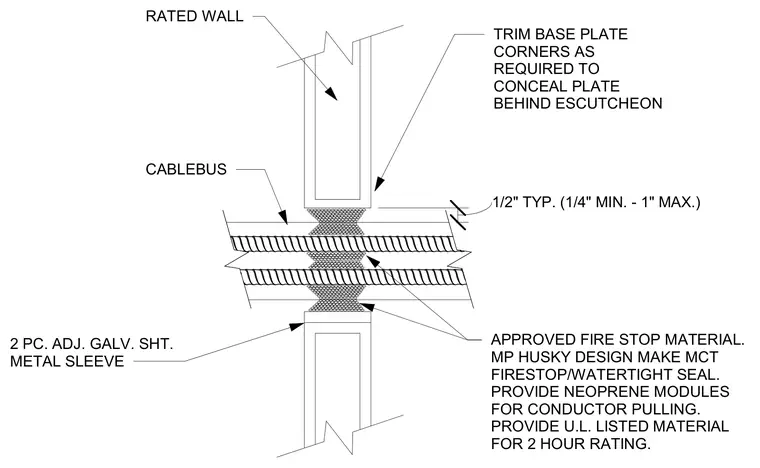

A cablebus passes through a rated wall utilizing a two-piece adjustable galvanized sheet metal sleeve with a one-half inch typical clearance. Approved firestop material and MP Husky design make multi-cable transit firestop and watertight seals are installed around the conductors. Neoprene modules are provided for conductor pulling within the assembly. All materials are U.L. listed to maintain a two-hour fire rating. Base plate corners are trimmed as required to conceal the plate behind the escutcheon.
RATED WALL APPROVED FIRE STOP MATERIAL. MP HUSKY DESIGN MAKE MCT FIRESTOP/WATERTIGHT SEAL. PROVIDE NEOPRENE MODULES FOR CONDUCTOR PULLING. PROVIDE U.L. LISTED MATERIAL FOR 2 HOUR RATING. TRIM BASE PLATE CORNERS AS REQUIRED TO CONCEAL PLATE BEHIND ESCUTCHEON 2 PC. ADJ. GALV. SHT. METAL SLEEVE 1/2" TYP. (1/4" MIN. - 1" MAX.) CABLEBUS
