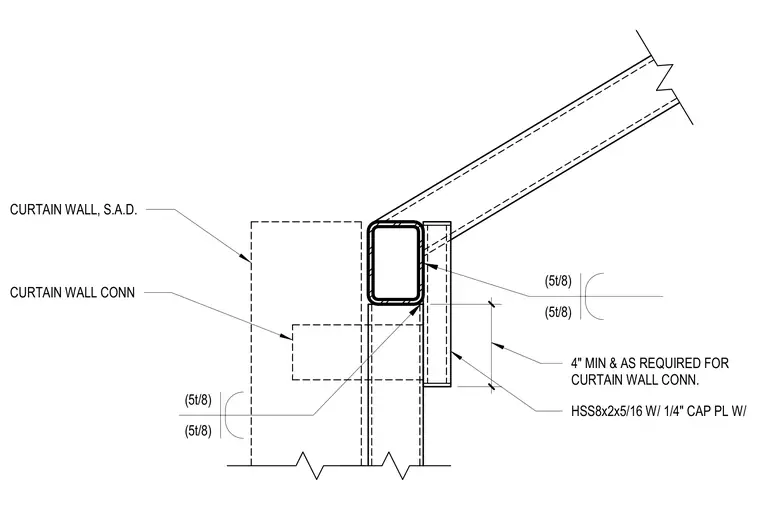

An HSS8x2x5/16 hollow structural section with a one-quarter-inch thick cap plate supports the assembly framing into a curtain wall connection. A minimum four-inch clearance or as required is maintained for the curtain wall connection. The supporting steel member integrates with the skylight framing and vertical curtain wall alignment.
HSS8x2x5/16 W/ 1/4" CAP PL W/ (5t/8) (5t/8) CURTAIN WALL, S.A.D. CURTAIN WALL CONN (5t/8) (5t/8) . 4" MIN & AS REQUIRED FOR CURTAIN WALL CONN.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
