Accessibility Mounting Heights for Electrical Devices

Elements

About this detail

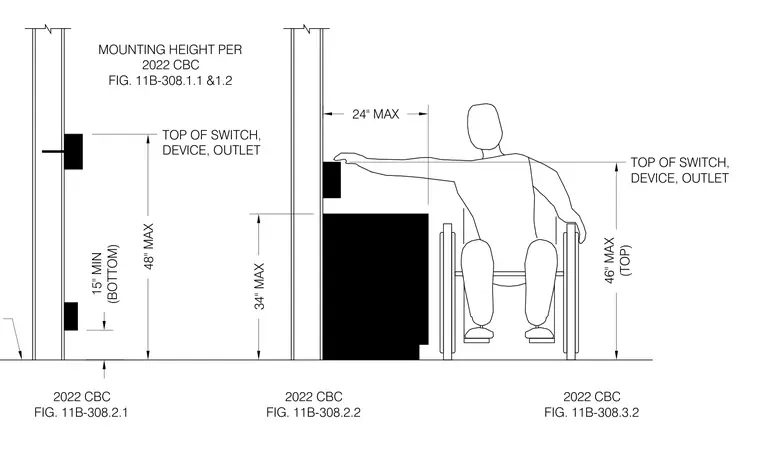

Electrical devices, switches, and outlets are mounted at specific heights above the finished floor to comply with accessibility standards. Unobstructed forward reach allows a maximum height of forty-eight inches and a minimum bottom height of fifteen inches. Side reach over an obstruction allows a maximum height of forty-six inches with a twenty-four inch maximum depth, while unobstructed side reach permits a maximum height of thirty-four inches. All mounting heights conform to the 2022 California Building Code Chapter 11B requirements.
