A one-half inch diameter hole is positioned in the door frame at one and five-eighths inches from the face of the door and eight inches from the edge of the door to route maglock wiring. A one-inch diameter hole is centered over the door and eight inches from the edge of the door through both the frame and the door to accommodate a door contact.

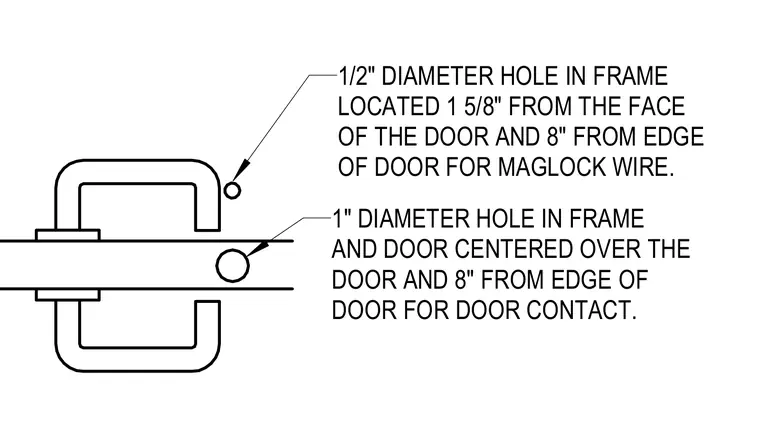

1/2" DIAMETER HOLE IN FRAME LOCATED 1 5/8" FROM THE FACE OF THE DOOR AND 8" FROM EDGE OF DOOR FOR MAGLOCK WIRE. 1" DIAMETER HOLE IN FRAME AND DOOR CENTERED OVER THE DOOR AND 8" FROM EDGE OF DOOR FOR DOOR CONTACT.
