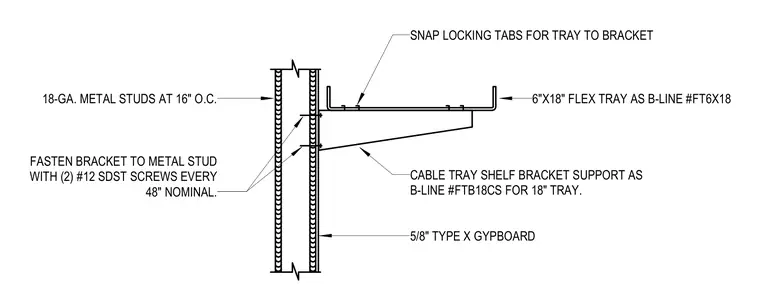

An eighteen-inch wide by six-inch deep flexible cable tray is supported by a shelf bracket fastened to interior wall framing. The wall assembly consists of eighteen-gauge cold-formed metal studs spaced at sixteen inches on center with five-eighths-inch Type X gypsum board on each side. The B-Line FTB18CS bracket is secured to the metal studs using two number twelve self-drilling self-tapping screws spaced at forty-eight inches nominal on center. The cable tray secures to the bracket using integrated snap locking tabs.
6"X18" FLEX TRAY AS B-LINE #FT6X18 18-GA. METAL STUDS AT 16" O.C. FASTEN BRACKET TO METAL STUD WITH (2) #12 SDST SCREWS EVERY 48" NOMINAL. 5/8" TYPE X GYPBOARD CABLE TRAY SHELF BRACKET SUPPORT AS B-LINE #FTB18CS FOR 18" TRAY. SNAP LOCKING TABS FOR TRAY TO BRACKET
