Electrical · E-633JC

Mounting Height Over Obstruction

Elements

About this detail

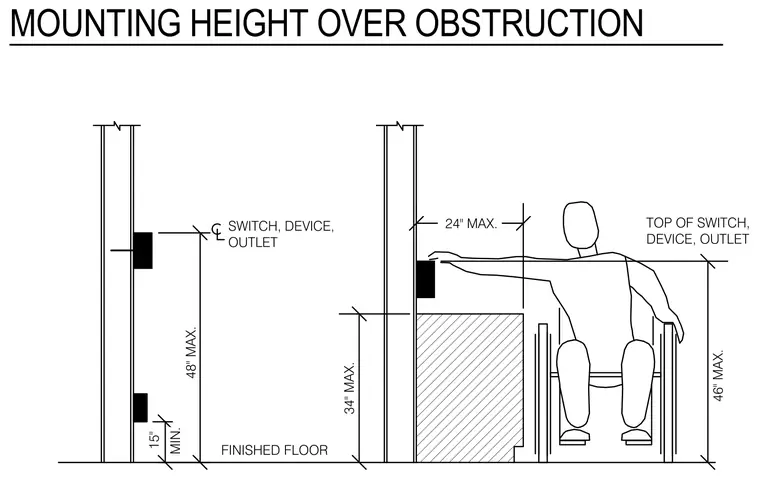

Maximum and minimum mounting heights for electrical switches, devices, and outlets relative to finished floor level and building obstructions. Standard reach ranges indicate a maximum height of forty-eight inches and a minimum of fifteen inches from the finished floor for unobstructed locations. When an obstruction is present, the maximum height above the finished floor is restricted to forty-six inches, with a maximum depth of twenty-four inches for the obstruction standing thirty-four inches maximum from the floor.
