Electrical · E-5ZE5W

Typical Automatic Shade Control Riser Diagram

Elements

About this detail

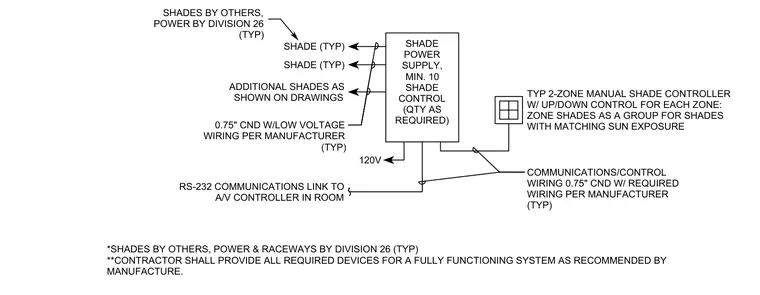

This electrical riser diagram details the connections for an automatic shade control system powered by a shade power supply rated for a minimum of ten shade controls with quantities as required. The setup incorporates a typical two-zone manual shade controller featuring up and down control for each zone to group shades with matching sun exposure. Low voltage wiring runs through seventy-five-hundredths-inch conduits per the manufacturer specifications, alongside one hundred twenty-volt power feeds and communications control wiring. An RS-232 communications link connects the system to an audio-visual controller in the room. Division 26 provides power and raceways while the shades themselves are by others, with the contractor responsible for supplying all required devices for a fully functioning system.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
