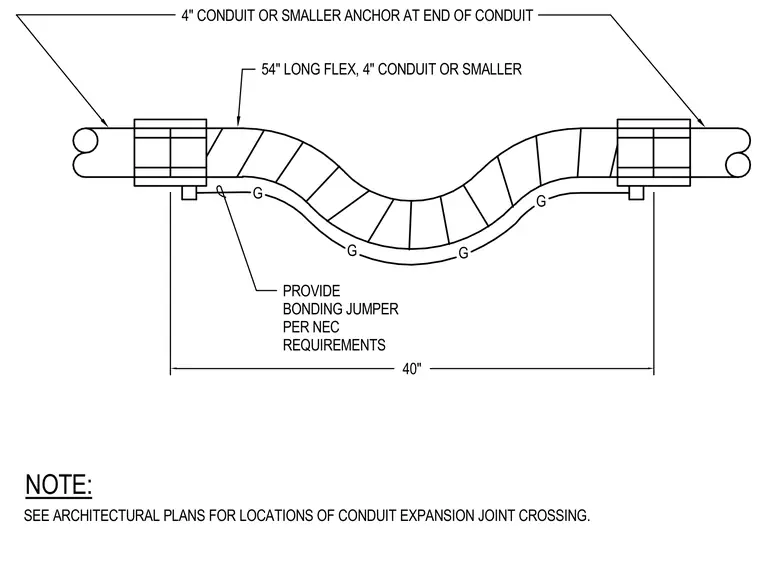

A 4-inch or smaller electrical conduit crosses a structural expansion joint using a 54-inch long flexible conduit section. The rigid conduit is securely anchored at each end before the joint transition. A bonding jumper is provided across the flexible section to comply with National Electrical Code requirements. Architectural plans should be referenced for the exact locations of conduit expansion joint crossings.
40" 4" CONDUIT OR SMALLER ANCHOR AT END OF CONDUIT 54" LONG FLEX, 4" CONDUIT OR SMALLER NOTE: SEE ARCHITECTURAL PLANS FOR LOCATIONS OF CONDUIT EXPANSION JOINT CROSSING. G G G G PROVIDE BONDING JUMPER PER NEC REQUIREMENTS
