Firestop System W-J-3158 Assembly Detail

About this detail

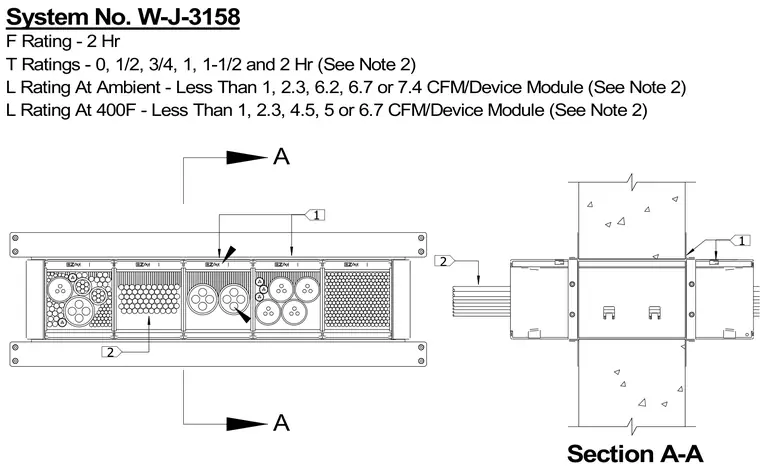

System No. W-J-3158 provides a 2-hour F rating with T ratings ranging from 0 to 2 hours depending on the configuration. Air leakage (L) ratings at ambient temperature are less than 1 up to 7.4 CFM per device module, and less than 1 up to 6.7 CFM at 400 degrees Fahrenheit. The assembly consists of multi-cable transit modules penetrated by cables, with section views detailing the installation within a rated assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
