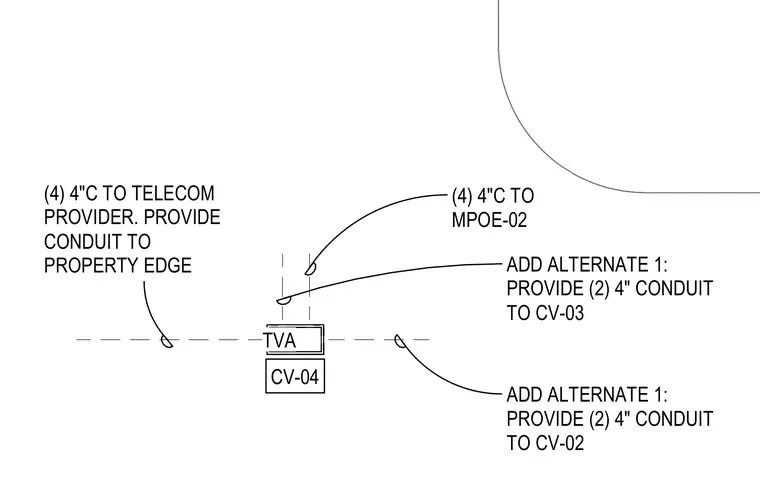

Four four-inch conduits extend from telecom vault TVA CV-04 to the telecom provider at the property edge. Additional runs connect the vault to MPOE-02. Add Alternate 1 includes two four-inch conduits routed to CV-03 and another two four-inch conduits routed to CV-02.
TVA CV-04 (4) 4"C TO TELECOM PROVIDER. PROVIDE CONDUIT TO PROPERTY EDGE ADD ALTERNATE 1: PROVIDE (2) 4" CONDUIT TO CV-02 ADD ALTERNATE 1: PROVIDE (2) 4" CONDUIT TO CV-03 (4) 4"C TO MPOE-02
