UL924 Listed 20A Multiple Pole Relay in NEMA 1 Enclosure

About this detail

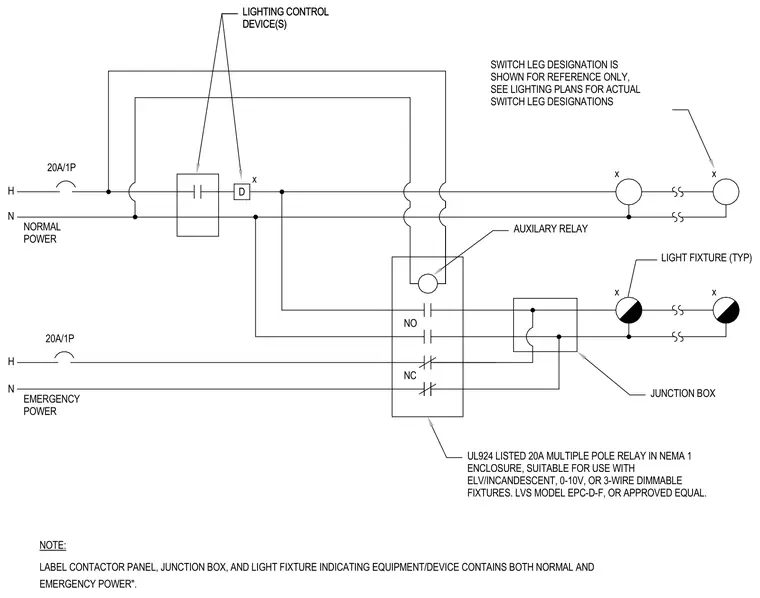

An auxiliary relay and lighting control device interface normal and emergency twenty-amp single-pole power feeds with standard and emergency light fixtures. The UL924 listed twenty-amp multiple pole relay in a NEMA 1 enclosure is suitable for use with ELV, incandescent, 0-10V, or three-wire dimmable fixtures. A junction box facilitates connections to the switch legs. All contactor panels, junction boxes, and light fixtures must be labeled to indicate that the equipment contains both normal and emergency power.
