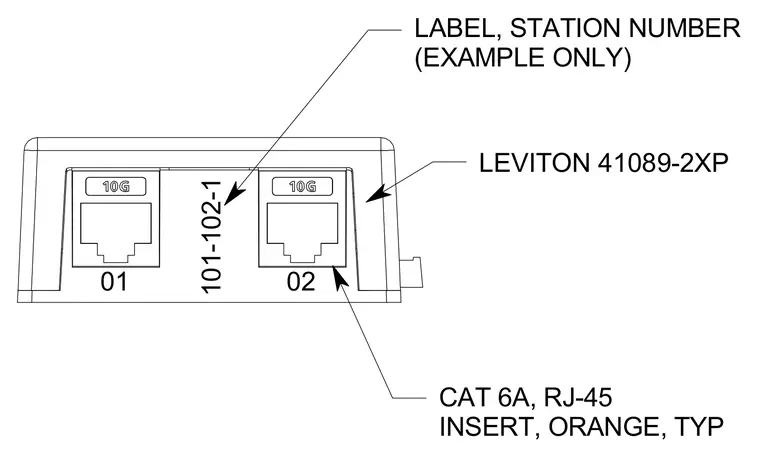

Dual CAT 6A data outlet assembly utilizing Leviton 41089-2XP housing with orange RJ-45 inserts. Typical station numbering and 10G identification labels are applied as indicated.
CAT 6A, RJ-45 INSERT, ORANGE, TYP LABEL, STATION NUMBER (EXAMPLE ONLY) LEVITON 41089-2XP 01 02 101-102-1
