Electrical · E-5H9SS

Generator and Equipment Grounding Riser Diagram

About this detail

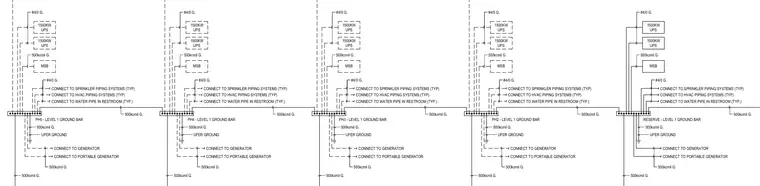

This electrical grounding diagram details the connections between multiple 1500kW UPS units, main switchboards (MSB), and level 1 ground bars utilizing 500kcmil and #4/0 grounding conductors. Connections extend to structural ufer grounds, portable generators, and system bonding jumpers. Typical bonding connections tie into building plumbing, HVAC, and fire sprinkler piping systems.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
