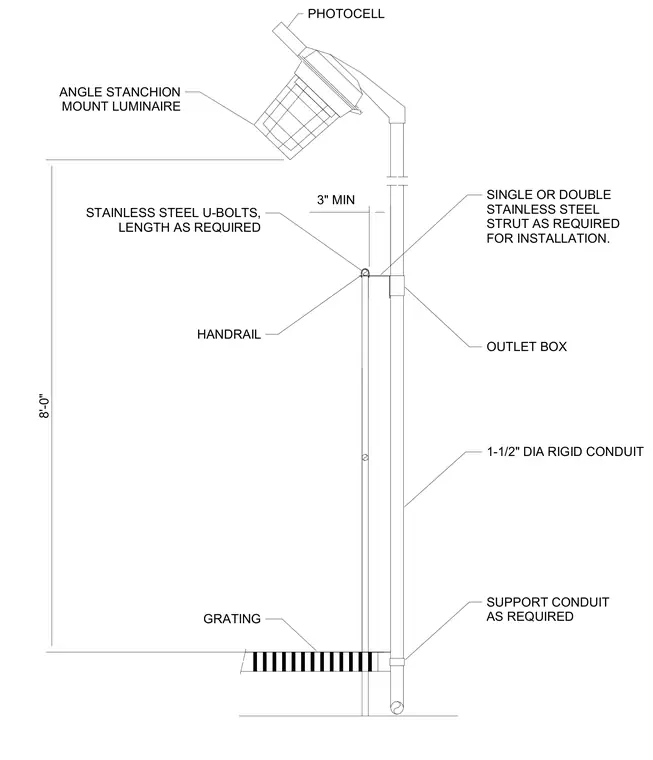

An angle stanchion-mounted luminaire and photocell are supported by a 1-1/2-inch diameter rigid conduit. The assembly attaches to a handrail using stainless steel U-bolts of variable length, maintained at a 3-inch minimum clearance. Single or double stainless steel struts are provided as required for installation along with an outlet box and support conduit. The entire vertical support assembly rises 8 feet from the roof grating level.
8'-0" 3" MIN SUPPORT CONDUIT AS REQUIRED 1-1/2" DIA RIGID CONDUIT GRATING HANDRAIL STAINLESS STEEL U-BOLTS, LENGTH AS REQUIRED ANGLE STANCHION MOUNT LUMINAIRE OUTLET BOX SINGLE OR DOUBLE STAINLESS STEEL STRUT AS REQUIRED FOR INSTALLATION. PHOTOCELL
