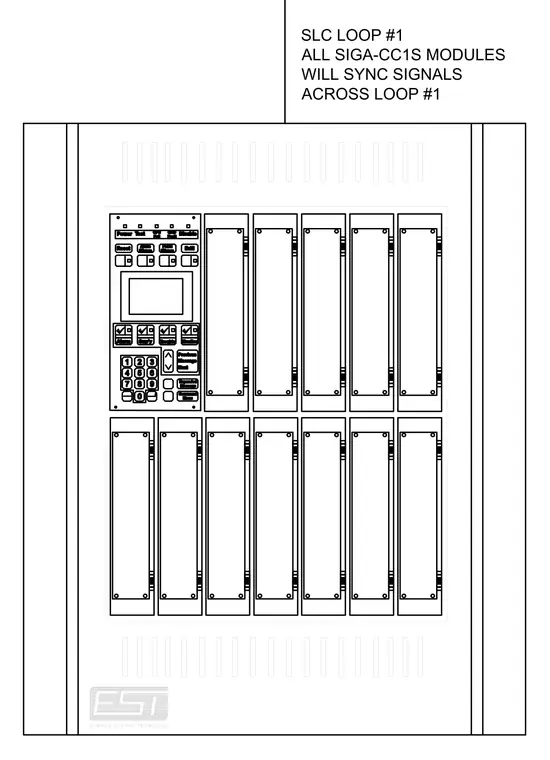

The signaling line circuit loop 1 connects all SIGA-CC1S modules to synchronize signals across the loop. The equipment enclosure houses a primary control interface with an LCD screen, keypad, status indicators, and ten expansion module slots arranged in two rows. Edwards Systems Technology hardware components are installed per the system riser diagram.
