Electrical · E-5FPRN

Equipment Ground Connection

Materials

Elements

About this detail

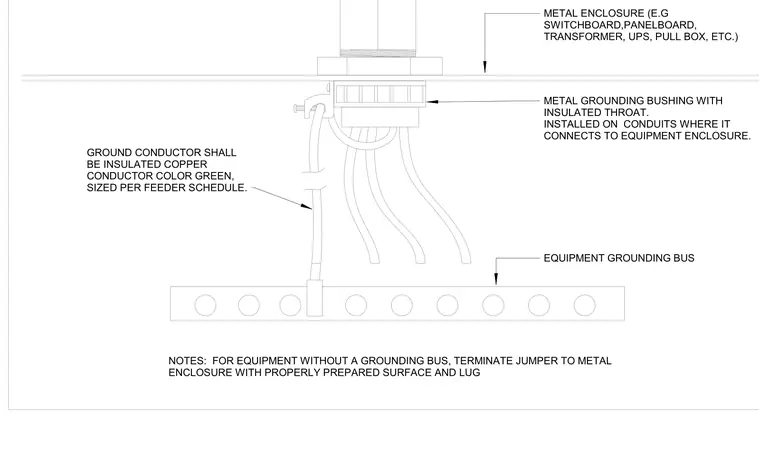

A metal grounding bushing with an insulated throat is installed on conduits where they connect to a metal enclosure such as a switchboard, panelboard, transformer, uninterruptible power supply, or pull box. An insulated green copper ground conductor connects the conduit bushing to the equipment grounding bus, sized per the feeder schedule. For equipment lacking a grounding bus, a jumper terminates directly to the metal enclosure using a properly prepared surface and lug.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
