Electrical · E-5CNHA

Data-Loop to Next Fire Alarm Data-Loop

Elements

About this detail

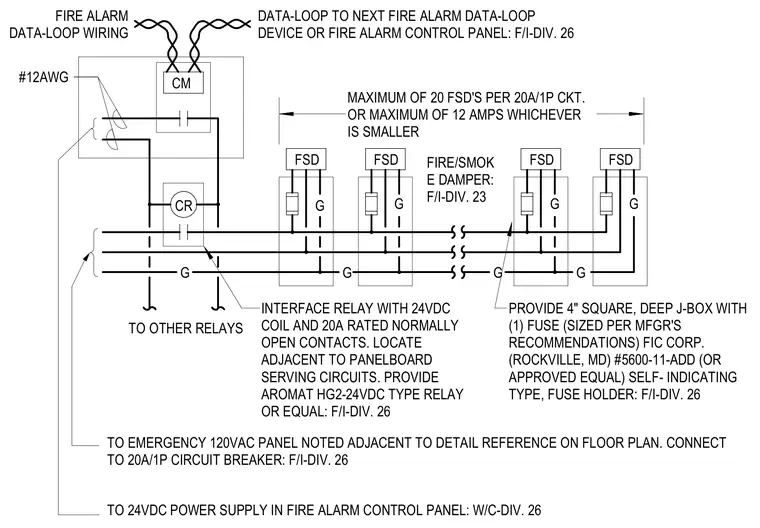

Wiring diagram detailing the connection of fire smoke dampers to a twenty-amp single-pole circuit and a twenty-four-volt direct current power supply. The layout includes an interface relay with a twenty-four-volt direct current coil and twenty-amp rated normally open contacts located adjacent to the serving panelboard. Each fire smoke damper circuit utilizes twelve American Wire Gauge conductors and includes a four-inch square deep junction box equipped with a self-indicating fuse holder. A maximum of twenty fire smoke dampers are permitted per twenty-amp single-pole circuit, or a maximum of twelve amps, whichever is smaller.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
