Motor Control Center Single Line Diagram

About this detail

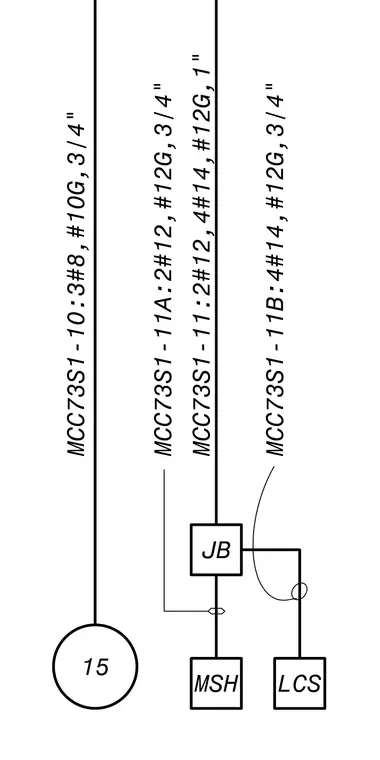

An electrical schematic showing feeder circuit connections from motor control center MCC73S1 to motor starter MSH and local control station LCS via a junction box. The circuit utilizes two number twelve wires with one number twelve ground wire in a three-quarter inch conduit for circuit 11A, and four number fourteen wires with one number twelve ground wire in a three-quarter inch conduit for circuit 11B. A separate feeder circuit 10 utilizes three number eight wires with one number ten ground wire in a three-quarter inch conduit routed to device 15.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
