Electrical · E-58VHA

Exterior Lighting Control Wiring Diagram

About this detail

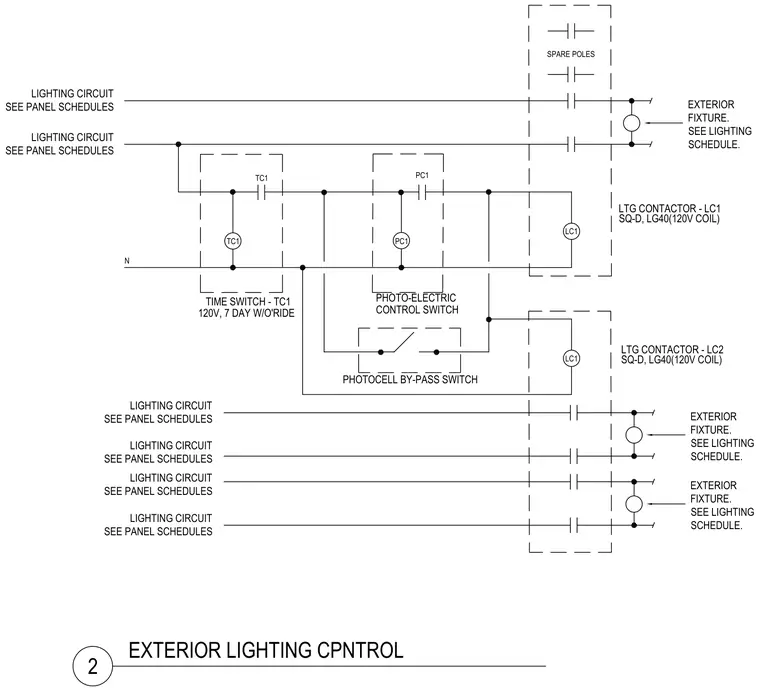

An exterior lighting control wiring diagram showing lighting circuits routed through a one-hundred-twenty-volt seven-day time switch, a photoelectric control switch, a photocell bypass switch, and lighting contactors. The system incorporates lighting contactors LC1 and LC2 utilizing Square D LG40 models with one-hundred-twenty-volt coils, along with spare poles. Exterior lighting circuits feed from panel schedules to exterior fixtures specified on the lighting schedule.
