A trapeze support assembly for electrical conduits mounts to pre-engineered metal building channels and girts. Vertical Unistrut channels attach to the overhead framing members according to delegated design requirements. Multiple horizontal tiers of Unistrut support rows of conduits, with spacing limited per reference drawings. A diagonal Unistrut member provides seismic lateral bracing as specified by the delegated designer.

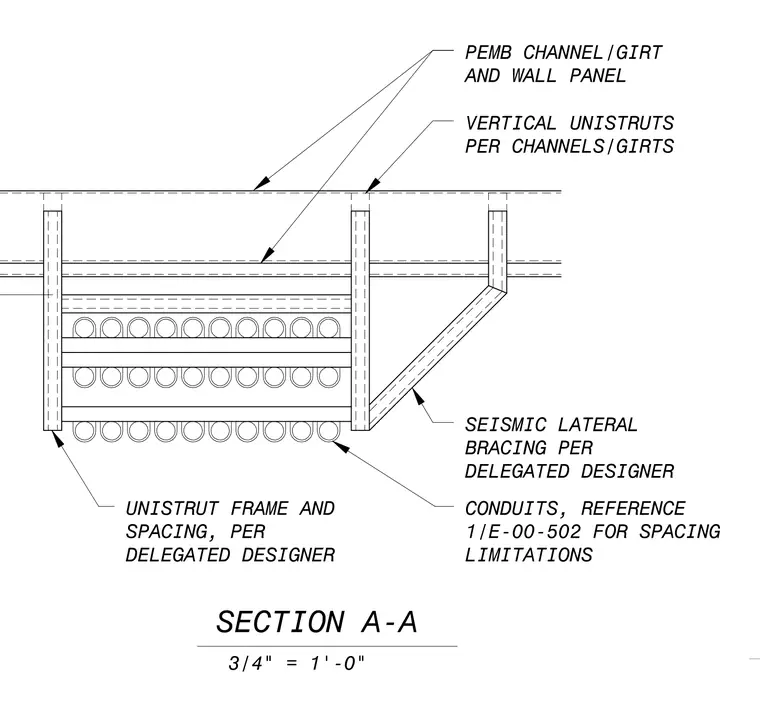

VERTICAL UNISTRUTS PER CHANNELS/GIRTS i i i i i i + '/ I I I I 7 I I I I / SEISMIC LATERAL BRACING PER DELEGATED DESIGNER UNISTRUT FRAME AND SPACING, PER DELEGATED DESIGNER CONDUITS, REFERENCE 11E-00-502 FOR SPACING LIMITATIONS PEMB CHANNEL/GIRT AND WALL PANEL SECTION A-A 3/4 n 1' -0 n
