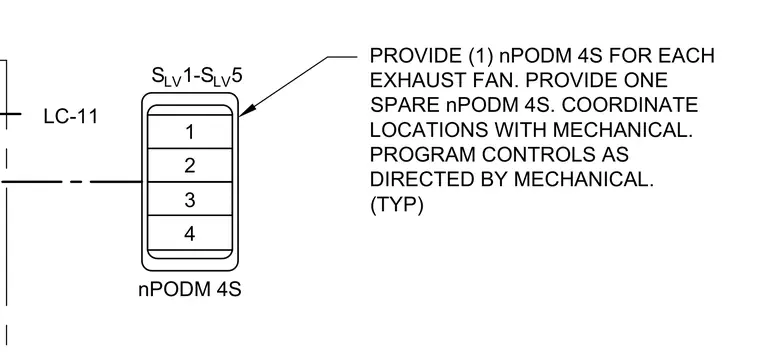

Provide one nPODM 4S switch for each exhaust fan along with one spare nPODM 4S unit. Coordinate exact device locations with the mechanical trade and program controls as directed by mechanical.
LC-11 1 2 3 4 nPODM 4S PROVIDE (1) nPODM 4S FOR EACH EXHAUST FAN. PROVIDE ONE SPARE nPODM 4S. COORDINATE LOCATIONS WITH MECHANICAL. PROGRAM CONTROLS AS DIRECTED BY MECHANICAL. (TYP) S LV 1-S LV 5
