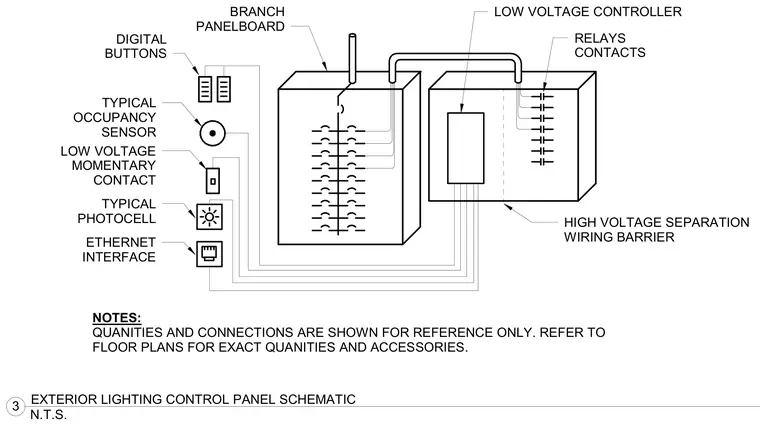

An exterior lighting control panel schematic shows the connection between a branch panelboard and a low voltage controller separated by a high voltage wiring barrier. Relays and contacts interface with low voltage momentary contacts, occupancy sensors, photocells, digital buttons, and an Ethernet interface. Quantities and connections serve as a reference only, with exact quantities and accessories detailed on the floor plans.
HIGH VOLTAGE SEPARATION WIRING BARRIER RELAYS CONTACTS LOW VOLTAGE CONTROLLER DIGITAL BUTTONS TYPICAL OCCUPANCY SENSOR LOW VOLTAGE MOMENTARY CONTACT TYPICAL PHOTOCELL ETHERNET INTERFACE BRANCH PANELBOARD NOTES: QUANITIES AND CONNECTIONS ARE SHOWN FOR REFERENCE ONLY. REFER TO FLOOR PLANS FOR EXACT QUANITIES AND ACCESSORIES. N.T.S. 3 EXTERIOR LIGHTING CONTROL PANEL SCHEMATIC
