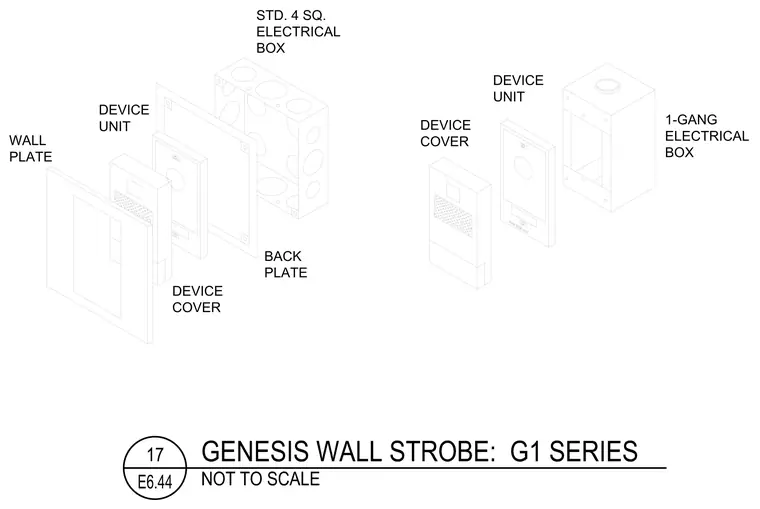

The assembly consists of a standard four-square electrical box or a one-gang electrical box paired with a back plate, a device unit, a device cover, and an exterior wall plate. Components align sequentially for surface or recessed wall mounting.
DEVICE COVER UNIT DEVICE BACK PLATE ELECTRICAL BOX STD. 4 SQ. PLATE WALL COVER DEVICE THIS SIDE OUT ELECTRICAL BOX 1-GANG DEVICE UNIT
