Copper Bus Bar Mounting and Ground Bar Detail

Materials

About this detail

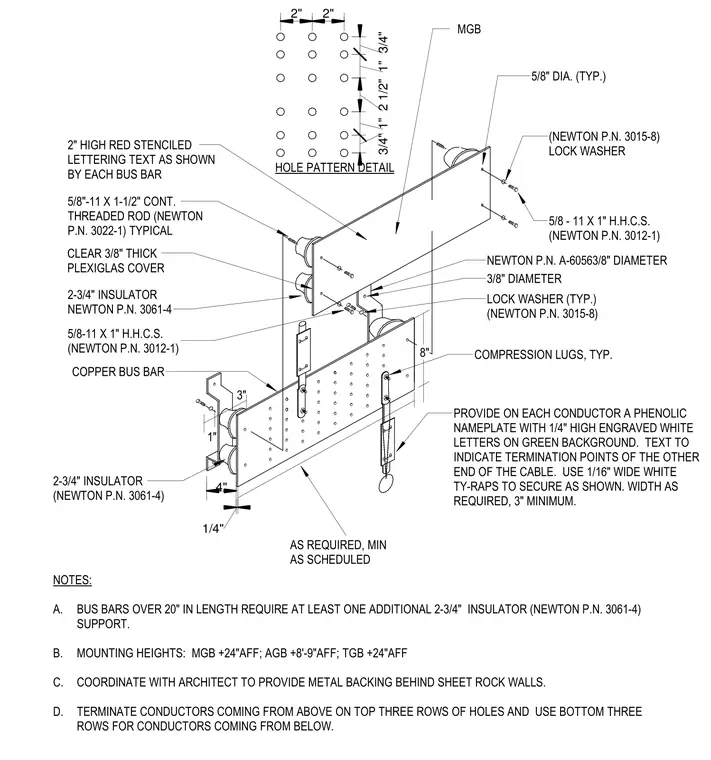

This isometric detail shows a copper bus bar mounted on 2-3/4 inch tall insulators secured with 5/8-11 by 1-1/2 inch continuous threaded rods. A clear 3/8 inch thick Plexiglas cover is attached over the bus bar using 5/8-11 by 1 inch hex head cap screws, lock washers, and specified part numbers. Compression lugs connect conductors to the bus bar, secured with 1/16 inch wide white Ty-Raps. Phenolic nameplates with 1/4 inch high engraved white letters on a green background indicate cable termination points. Stenciled red lettering identifies each bus bar, and additional note requirements specify mounting heights and support intervals.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
