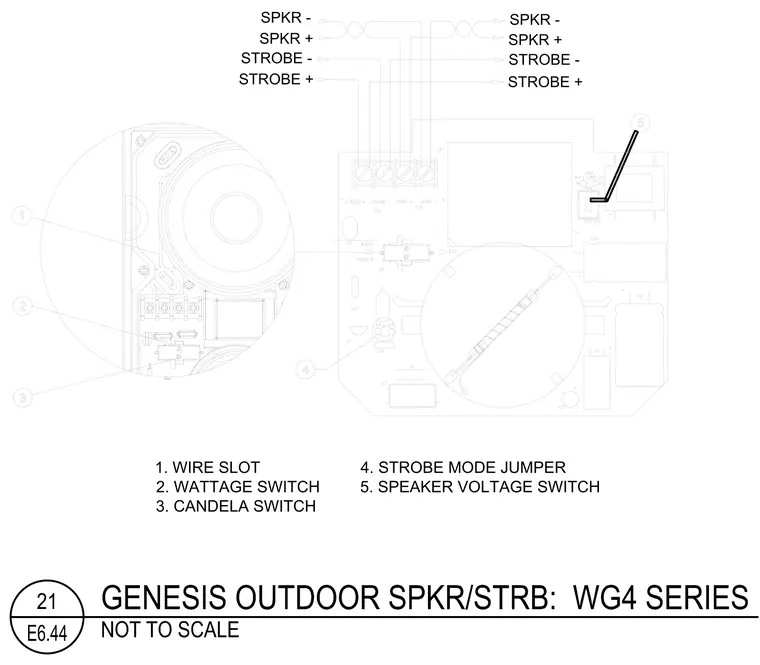

Terminal block connections and configuration switches for the Genesis Outdoor Speaker Strobe WG4 Series. Input wiring for the speaker and strobe circuits is routed through the wire slot to designated terminal block connections. Configurable settings include a wattage switch, a candela switch, a strobe mode jumper, and a speaker voltage switch. Component identification and terminal designations are provided for proper field wiring and device setup.
1. WIRE SLOT 2. WATTAGE SWITCH 3. CANDELA SWITCH 4. STROBE MODE JUMPER 5. SPEAKER VOLTAGE SWITCH SPKR - SPKR + STROBE - STROBE + SPKR - SPKR + STROBE - STROBE +
