PLC I/O Drop 9 Control Panel One-Line Diagram

Materials

About this detail

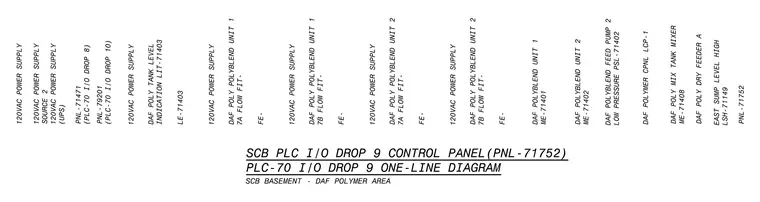

PLC I/O drop 9 control panel and associated instrumentation for the SCB basement DAF polymer area are detailed in this one-line electrical diagram. Power supply connections, including 120VAC power sources and uninterruptible power supply feeds, link to control panel PNL-71752. Inputs and outputs are charted for DAF polyblend units, mixers, dry feeders, level indicators, and low pressure switches such as LSH-71149, ME-71408, PSL-71402, ME-71402, and ME-71401. Additional interconnections reference PLC-70 I/O drops 8 and 10 via panels PNL-71471 and PNL-79201.
