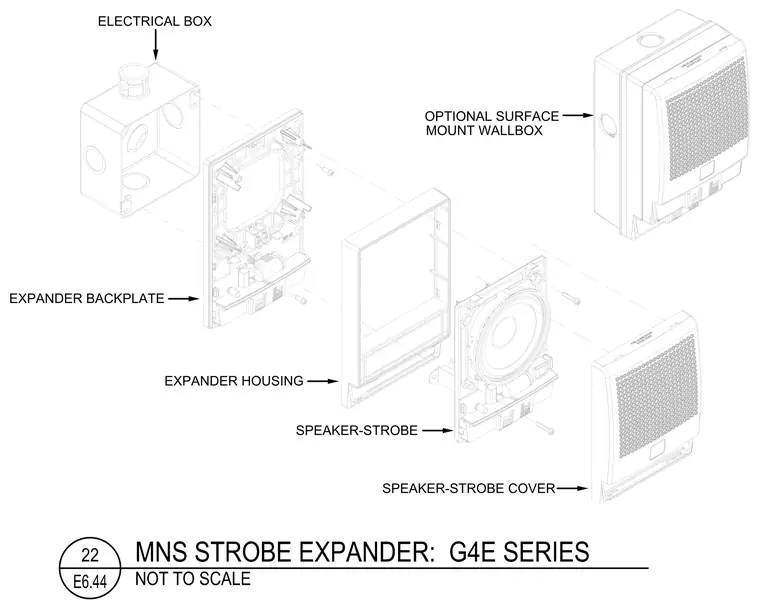

An expander backplate mounts directly to an electrical box or an optional surface mount wallbox. An expander housing attaches over the backplate, followed by the speaker-strobe unit. A speaker-strobe cover snaps over the entire assembly to complete the installation.
ELECTRICAL BOX EXPANDER BACKPLATE EXPANDER HOUSING SPEAKER-STROBE SPEAKER-STROBE COVER OPTIONAL SURFACE MOUNT WALLBOX
