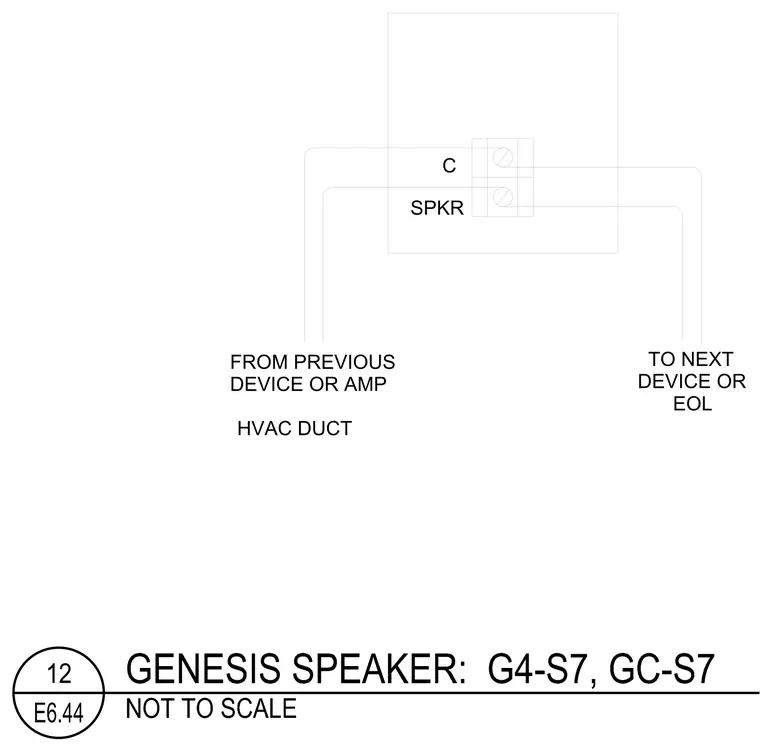

Wiring connections route from a previous device or amplifier into the Genesis speaker unit, with continuing runs extending to the next device or end-of-line component near an HVAC duct.
