Electrical · E-4W9BA

Wall Mounted Devices Alignment and Spacing Detail

Materials

Elements

About this detail

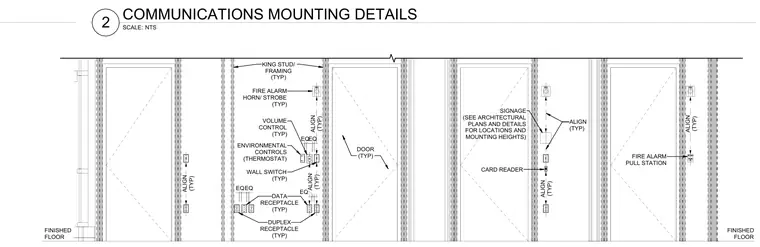

Wall-mounted electrical and communication devices align vertically and horizontally relative to door frames and king studs. Typical devices include fire alarm horn strobes, volume controls, thermostats, wall switches, data receptacles, duplex receptacles, card readers, and fire alarm pull stations. Signage locations and mounting heights coordinate with architectural plans. All devices maintain consistent spacing and alignment as indicated from the finished floor.
